An Automated Storage and Retrieval System (AS/RS / Smart Warehousing / Intelligent Warehousing) is a highly efficient and high-precision automated warehousing solution that primarily uses "trays" as the standard storage unit. Through the collaborative operation of vertical lifting devices and horizontal movement mechanisms, the system can automatically complete the storage and retrieval operations of cargo trays. The overall operation is managed by a Warehouse Management System (WMS), realizing an accurate, fast, and secure automated storage and retrieval process.
This type of automated warehousing equipment features high space utilization and a modular design, allowing flexible adjustment of storage slot configurations and access strategies based on warehousing needs. It is suitable for storing a wide variety of items, including: tools, cutters, precision parts, mechanical spares, consumables, medicines, molds, archives, and documents. By implementing an AS/RS, enterprises can effectively reduce manual operation errors, increase inventory turnover speed, and enhance overall inventory visibility and control efficiency.
The application fields of Automated Storage and Retrieval Systems are extremely broad, covering various industries such as machinery manufacturing, electronic technology, the automotive industry, modern logistics, food processing, publishing and printing, medical and healthcare, petrochemicals, precision instruments, aerospace, and more. Whether dealing with high-frequency storage and retrieval, highly diverse product types, or scenarios requiring strict temperature, humidity, and safety management, AS/RS solutions deliver stable and scalable operational performance.
Furthermore, with the advancement of industrial digitization and smart factories, adopting automated warehousing technology has become a key strategy for enterprises to improve supply chain flexibility, strengthen operational efficiency, and drive sustainable development. Junyao Technology specializes in providing integrated AS/RS solutions. By combining AI intelligent scheduling, data analytics, and IoT monitoring, we help enterprises comprehensively upgrade their warehouse management models and stride toward a true era of intelligent operations.

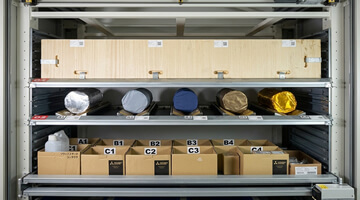

The vertical AS/RS uses trays as the primary storage unit. Through the automatic height measurement function configured at the access port, it automatically detects cargo height and intelligently allocates storage slots, maximizing the vertical utilization of warehouse space.

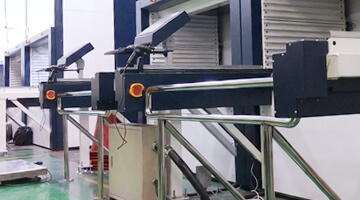

Compared to traditional racking methods, a vertical AS/RS can save over 65% of space within the same footprint, effectively reducing manual operation frequency and warehouse running costs.

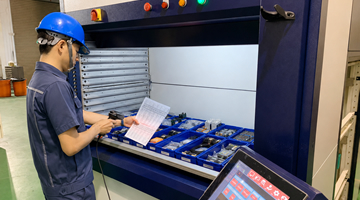

The automated warehousing system is equipped with an advanced computer control system to achieve automatic storage and retrieval. The entire process can be connected with enterprise resource planning systems such as ERP / MES, enabling a highly efficient "Goods-to-Person" logistics model.

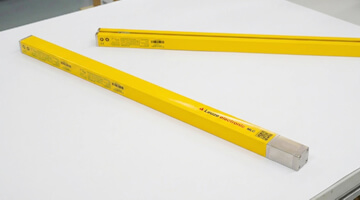

The AS/RS is fully equipped with sensors, photoelectric detection devices, safety light curtains, and an access port with an automatic door lock design to ensure the safety of cargo and personnel, reducing equipment damage and operational risks.

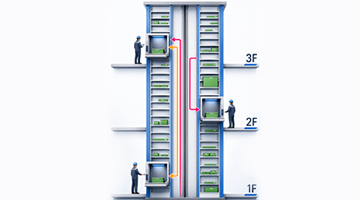

This AS/RS features high modularity and customization flexibility. It can be designed and expanded according to industry characteristics and product types, making it the ultimate tool for driving smart factory and digital warehouse transformation.
Open rack storage, requiring manual labor or forklifts to access materials
The new "Goods-to-Person" retrieval concept
| Project / Model | SSL3 | SSL4 | SSL5 | SSL6 | SSL7 | SSL8 | SSL9 |
|---|---|---|---|---|---|---|---|
| Equipment Height H (mm) | 3129 | 4154 | 5179 | 6204 | 7229 | 8254 | 9279 |
| Vertical Lifting Speed | 0.28 ~ 1 m/s | ||||||
| Infeed/Outfeed Transfer Speed | 0.28 ~ 0.46 m/s | ||||||
| Equipment Dimensions (W x D) (mm) | Extra Large: 4506 x 3290 |
Large: 2855 x 3290 |
Medium: 2153 x 3014 |
Small: 1555 x 2555 |
- | - | - |
| Tray Dimensions (W₁ x D₁) (mm) | Extra Large: 4200 x 880 |
Large: 2549 x 879 |
Medium: 1847 x 787 |
Small: 1249 x 634 |
- | - | - |
| Equipment Footprint | Extra Large: 14.82 ㎡ |
Large: 9.39 ㎡ |
Medium: 6.48 ㎡ |
Small: 3.97 ㎡ |
- | - | - |
| Tray Load Capacity | 300kg / 500kg / 1000kg | ||||||
| Tray Height | 48 mm | ||||||
| Noise Level | ≤ 70dB | ||||||
| Rated Voltage | 3-Phase 3-Wire 220V | ||||||
| Project / Model | SSL3 | SSL4 | SSL5 | SSL6 | SSL7 | SSL8 | SSL9 |
|---|---|---|---|---|---|---|---|
| Required Installation Height (mm) | 3329 | 4354 | 5379 | 6404 | 7429 | 8454 | 9479 |
| Floor Load Capacity (1t ~ 60t) | Extra Large: 0.3 ~ 4.3 |
Large: 0.4 ~ 6.3 |
Medium: 0.5 ~ 9.2 |
Small: 0.7 ~ 15 |
- | - | - |
| Required Floor Flatness | ± 3mm | ||||||
| Operating Ambient Temperature | -10°C ~ 50°C | ||||||
| Operating Ambient Humidity | < 80%, non-condensing | ||||||
| Required Floor Load Capacity | As shown in the table above | ||||||
